Product DETAILS

8000 lbs

TONGUE WEIGHT LIFT CAPACITY

11:1/3:1

Gear Ratio

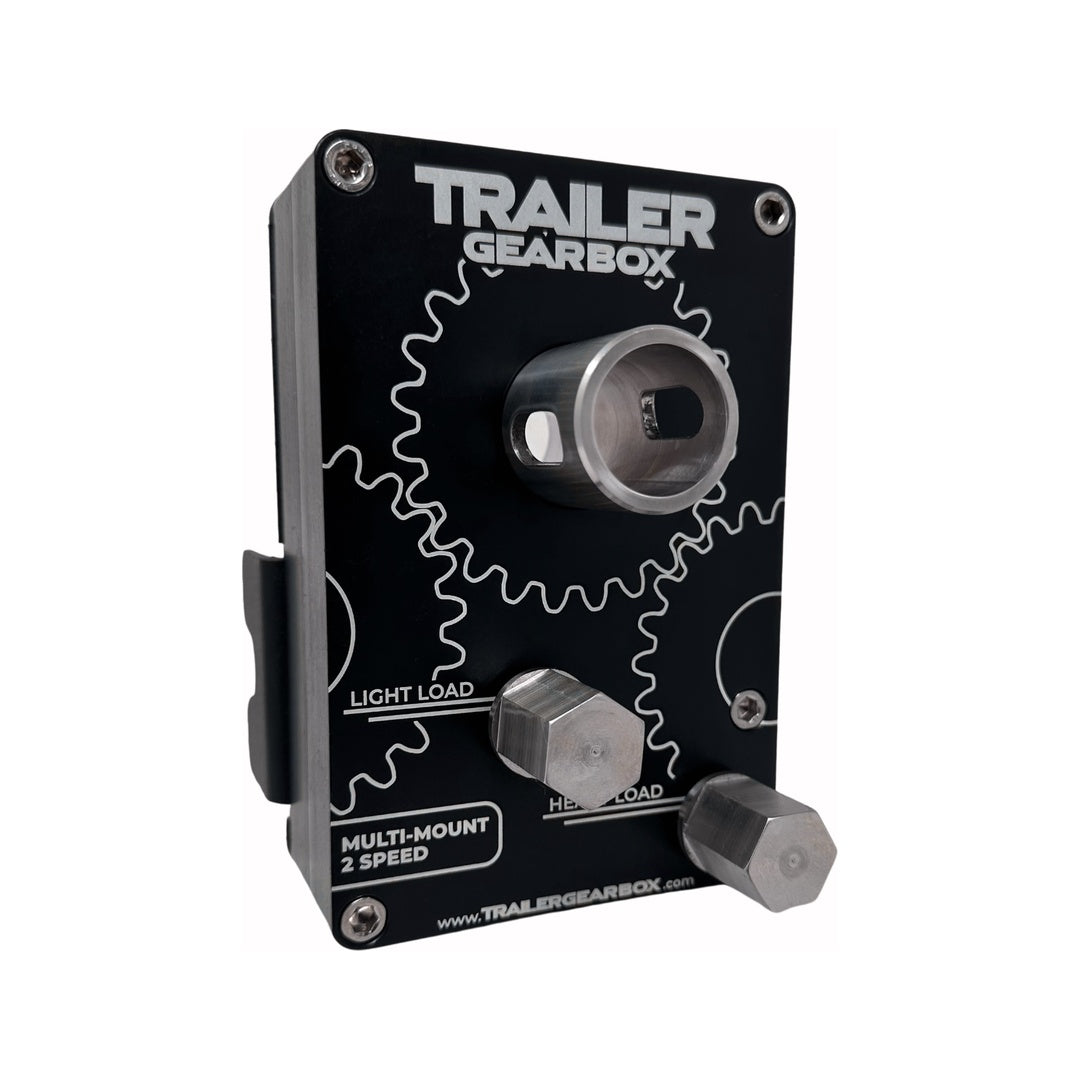

TheMulti-Mount Dual Speed Gearboxis built to eliminate manual cranking while giving you control over how the job gets done. By pairing with a standard cordless drill, it transforms trailer operation into a faster, more efficient process, while allowing you to switch between speed and torque depending on the situation. The dual-speed system provides a 3:1 high-speed ratio for quick lowering and retraction, and an 11:1 low-speed ratio for lifting fully loaded trailers with control and reduced strain.

At its core is a two-speed drive mechanism designed to adapt to real-world use. High speed allows you to move quickly when the load is light or during setup, while low speed provides the mechanical advantage needed for heavy lifting. This gives you a level of flexibility that a single-speed system cannot offer, without adding unnecessary complexity to operation.

The housing is machined from billet aluminum to withstand repeated use and demanding environments. Whether used on job sites, in fleet operations, or for regular towing, it is built to handle continuous load cycles while maintaining reliability. The design remains compact and practical, making it easy to handle, transport, and deploy across different trailers.

The Multi-Mount platform is designed for compatibility and efficiency. Its universal mounting system allows it to work across a wide range of trailer types, while the quick attach system enables fast transfer between trailers with no permanent modifications. This reduces equipment redundancy and makes it a practical solution for both individual users and multi-trailer fleets.

Manufactured in the USA, the Multi-Mount Dual Speed is built as a durable, long-term solution for users who need both speed and power in a single system. It replaces manual effort with a controlled, adaptable mechanical advantage, improving efficiency while reducing strain in everyday operation.

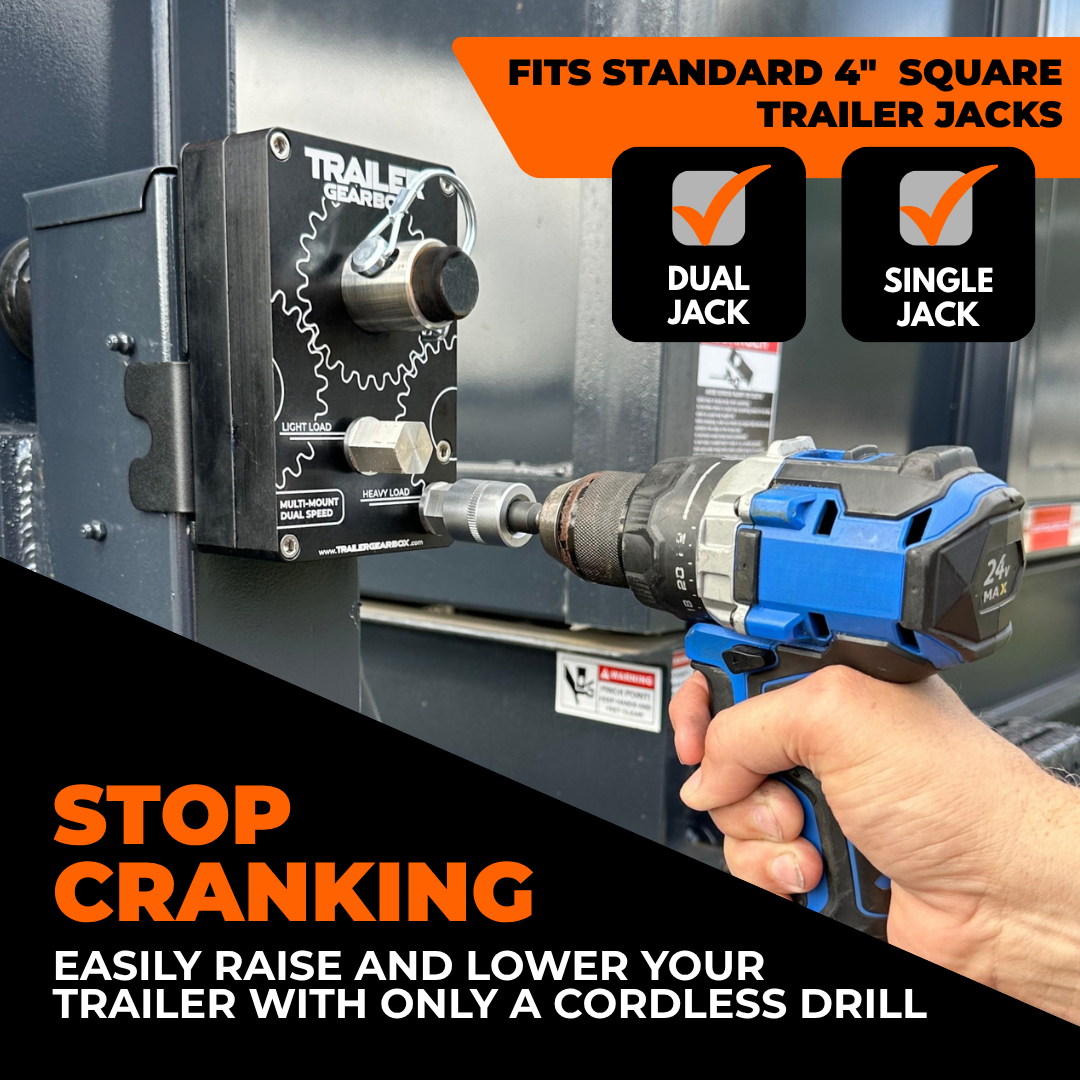

Cordless Drill Powered

Use your cordless drill to raise and lower your trailer effortlessly.

11:1/3:1 Gear Reduction System

Our multi-stage gear reduction allows raising and lowering even the heaviest trailers without strain on you or your drill.

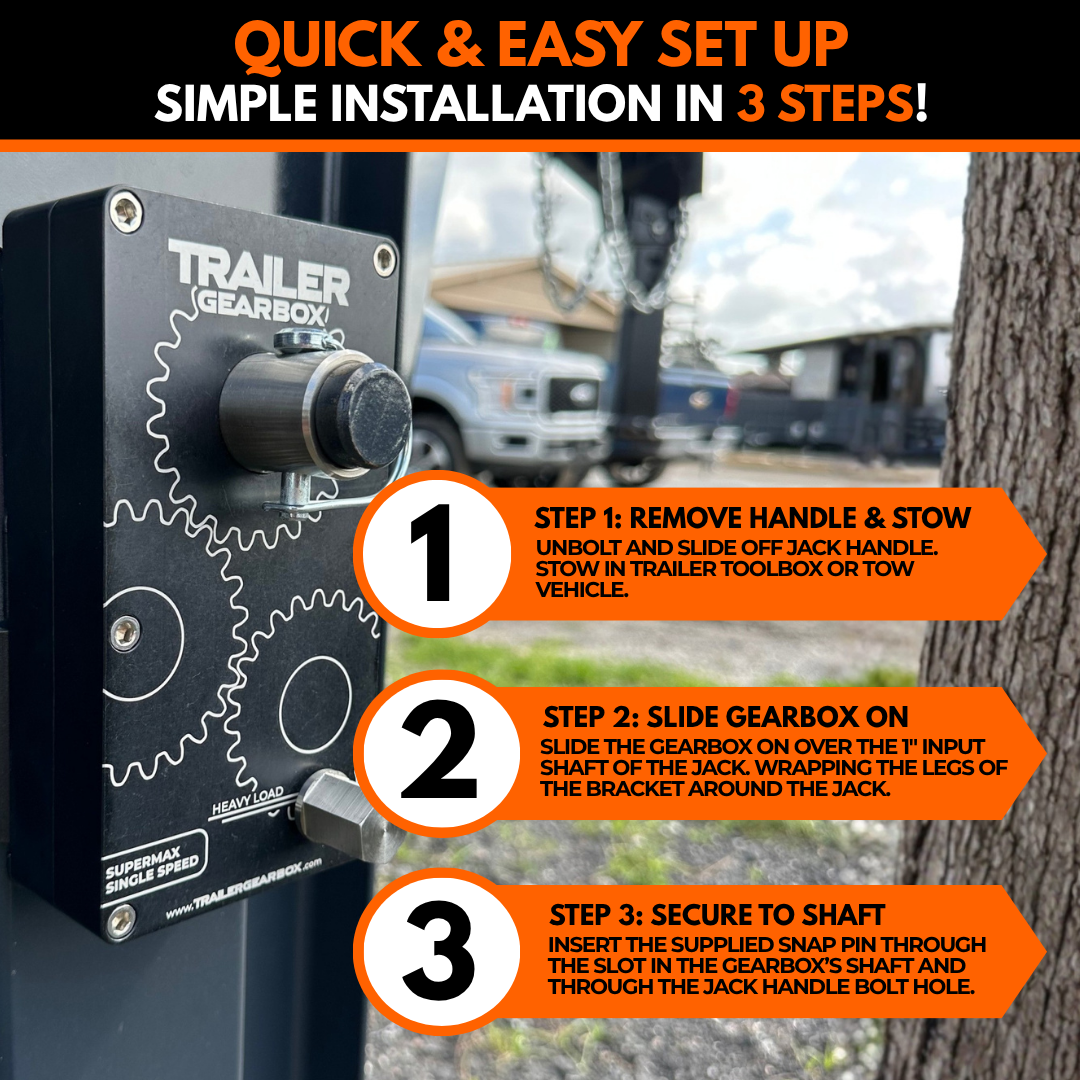

Universal Mounting System

Our wide selection of brackets makes mounting your Trailer Gearbox an easy no sweat task.

Fleet Friendly Design

Carry one gearbox on your truck and use with multiple trailers. Gearboxes go on and off in seconds.

Trailer Gear Box

Multi-Stage Gear Reduction

Gear reduction is what sets Trailer Gearbox apart from other trailer lifting solutions. Our multi-stage gear reduction takes your drill’s torque and multiplies it through multiple stages of spur gears, delivering efficient power to the jack. This allows you to raise and lower even the heaviest trailers without putting excessive strain on the drill or the user. Single-stage or direct drive options quickly max out your drill, while worm gear designs are inefficient and waste torque before it ever reaches the jack.

Trailer Gear Box

Heavy-Duty Construction

Our Gearboxes are engineered to take a beating. Constructed from high strength steel and billet aluminum and coated with an ultra durable anodized finish, you can be sure that your brackets can stand up to heavy loads and the most extream weather.

Trailer Gear Box

WE BACK UP OUR PRODUCTS

At Trailer Gearbox, we stand behind what we build. If it’s not right, we make it right-no runaround, no excuses. Our 5-Year Warranty is backed by real human support and our NO-BS commitment to our customers.

Frequently Asked Questions:

Trusted by people who tow

From First-Timers To Fleet Owners, See What Real Customers Have To Say

  • 5 stars: 53 (87%)
  • 4 stars: 5 (8%)
  • 3 stars: 2 (3%)
  • 2 stars: 1 (2%)
  • 1 star: 0 (0%)
Some of the reviews shown are from related products the merchant grouped with this one.
L
Lloyd Fallis
Game changer

Installed multi mount dual speed on gooseneck horse trailer today. Over under mount was recommended by the company. Effortless install and extremely pleased with gearbox.
Will be purchasing a second one for smaller trailer soon!

D
Donald Rhode
THE UNIT WORKS GREAT

THE UNIT WORKS GREAT, ONLY THING ON MY PJ 30 FT GOOSENECK IS THE BRACKET ON THE JACK INTERFERES WITH MOUNTING THE GEAR BOX, I HAD TO PUT IT UPSIDE DOWN, THINKING ABOUT MOVING THE JACK BRACKET TO PUT THE GEAR BOX UPRIGHT AS IT SHOULD BE, THANK YOU , AGAIN LOVE THE UNIT!

R
Rob Perkins
Absolutely love the unit so far

Absolutely love the unit so far. I hope more than anything it stands the test of time, but it's already been a game changer for my day to day in trailer rentals!

J
Jeffrey Drechsel
Amazing way to quit cranking on trailer

Amazing way to quit cranking on trailer jacks

W
William Rothman
You asked me to let you know what I’m I think

You asked me to let you know what I think. Well here goes. First and foremost I consider myself extremely mechanically inclined, and I’m jealous. I didn’t think of it first how simple how pragmatic how can you not have this in your arsenal? I carry a lot of stuff and now one more and that one more makes my experience of itching and unhitch Ching fantastic fantastic I’m getting a little older and getting cranky and I’m getting tired of cranking the crank that’s funny. but I still love what I do and this makes it so much easier it just makes my whole day better.

j
justin meeks
Love it veryyyy

Love it veryyyy handy

B
Brian Hurst
It just Works!!!

Works great!

1
1GN4NT
WORKS GREAT

NO MORE SWEATING!!!!!

D
Dave
Great product

Great product. Should have purchased it sooner.

A
Anonymous
Customer service

Customer service was awesome!

p
paul
It is working perfectly for me saves me a ton of

It is working perfectly for me saves me a ton of time

J
James Voges
I have a Iron Bull 7x14 ft dump trailer

I have a Iron Bull 7x14 ft dump trailer.
When raising the tongue on a loaded trlr, I have to operate the 1/2" Dewalt Drill locked in vs. High clutch number.

I think the "HEAVY" position needs to have a smaller gear, so it has more power.

J
JM Allison
An Old Man’s Must Have

Since I’ve been in the horse business for a while, I’m starting to fall apart. I’ve had back and shoulder surgeries so cranking a trailer is no fun. I have the Multi Mount Dual Speed and it is a live saver. Since I have it attached to the optional handle bracket, I can easily move it from one trailer to the next. Public service announcement (probably already written in the product documentation somewhere), since it is a precision fit, the jack shaft must be cleaned of all rust and paint for the gearbox to fix on the shaft. I recommend keeping a thin layer of grease on the shaft at all times. Buy with confidence!

B
Ben Crabb
Amazing product! Wish I would have ordered it a long time ago! Not only does this product keep you

Amazing product! Wish I would have ordered it a long time ago! Not only does this product keep you from wearing yourself out it also adds a sense of relief knowing someone cant just hook to your trailer and go. Without the jack handle there is no way to raise or lower the jack if your smart and put the gearbox in your truck. It takes about 2 seconds it install/uninstall this product! Also it can be used on multiple trailers with no extra expense! Might I add it lifted my 24' gooseneck trailer with a 14,000 pound excavator on its deck with ease!

A
Anonymous
Expensive little gadget but worth it

Expensive little gadget, but works great

L
Larry Jackson
Love

Love it

C
Christopher Kolousek
Best Thing Since Sliced Bread

I’ve been using my multi-speed Trailer Gearbox for over a year. I had a few bearing seize up due to neglect on my part. I let my unit get exposed to a rather harsh NE Ohio winter and didn’t lubricated as recommended. I called to get replacement bearing and they sent me a whole new unit under warranty. They also sent me new bearings and told me I could keep the old gearbox. Even after telling them it was my fault the gearbox failed, they insisted on sending me a new unit under warranty! Who does that?!?! Trailer Gearbox obviously! I give them 5 stars due to the quality of their product and their stellar USA customer service. I’ll continue doing business with them and highly recommend them to anyone who wants to purchase a high quality American made product! Thanks again Tailer Gearbox!

V
Vaughn Knight
Gear box works as promised

Gear box works as promised. Highly recommend.

A
Anonymous
Work's great it’s what I needed would not have to crank any more.

Work's great it’s what I needed would not have to crank any

R
Ron Roth
I no longer dread hooking up

I no longer dread hooking up trailers

j
jason strickland
It’s not what I expected

It’s not what I expected. Full charge 18v Milwaukee drill will not lift my trailer up. Stalls out. Even on the low speed. It works so two stars not 5 though.

Hi Jason, thank you for sharing your experience. We're sorry to hear the gearbox isn't meeting your needs. Please reach out to our support team so we can assist you further. What is the size of the trailer, the Multi-Mount Gearbox is rated for 8k on the jack and the SuperMax is rated for what your jacks are rated for.

D
David Haislop
Outstanding product! Top notch customer service

Outstanding product! Top notch customer service.Got the 2 speed for my son(has 3 trailers) and he loves it.At the end of the day he doesn’t have to dread unhooking the trailer .Just pop the gear box on and let the drill do the work.Thanks again for a great product and service behind it it .Special thanks to Dan for all his help.

J
Jeremiah Brown
A must have!!

If you have any trailers, this is a must have!!
I have one on all of my trailers, and I just keep a drill in my truck. Super simple!

A
Anonymous
a great idea well executed

a great idea well executed,
i keep it in my truck as it would be too easy for some one to walk away with if left on the trailer jack.

P
Patrick Green
Works

Works great

K
Kent Smith
Sure beats cranking

I couldn't wait to try it out and it worked flawlessly. I don't use the trailer a lot, but this will make hooking up a lot easier.

b
brad nyhan
Great product

Great product, works great

S
Stephen Monsivais
The gearbox sure makes it easier to connect my trailers

The gearbox sure makes it easier to connect my trailers.

C
Curtis Bloom
I like it

I like it, works well, as advertised!

G
Greg Fuller
Really great design

Really great design. Well-built compact and efficient unit. I really like the two-speed design.
