Sold out

Speed Jack - 5k A-Frame

$179.99 USD

Shipping calculated at checkout.

Orders before 2:30pm EST Ship Same Day Mon-Fri
Simple Returns

The Speed Jack is a fully integrated, American-made solution that replaces your standard A-frame trailer jack with a drill-powered lifting system. Built with a 3:1 gearbox, it delivers fast, efficient operation for both raising and lowering your trailer. Designed as a complete jack replacement, it simplifies your setup while giving you the speed and convenience of drill-powered operation in one compact unit.

Out of stock

Product DETAILS

3000 lbs

LIFT CAPACITY

5000 LBS

STATIC CAPACITY

TheSpeed Jackis built to streamline trailer operation by integrating a gearbox directly into a 5,000 lb A-frame jack. Instead of adding a gearbox to your existing setup, it replaces the jack entirely with a purpose-built, drill-powered solution. By pairing with a standard cordless drill, it allows you to raise and lower your trailer quickly and consistently with minimal effort.

With a 3:1 gear reduction, the Speed Jack is engineered to deliver fast operation without sacrificing real lifting capability. Unlike typical direct-drive competitors that rely heavily on drill torque alone, the integrated gearbox provides true mechanical advantage, allowing you to lift loaded trailers with control and ease while maintaining faster cycle times.

At its core is a direct-drive gearbox system designed for straightforward, reliable operation. It interfaces easily with a standard cordless drill, requiring no complex adapters or setup. The result is a simple, consistent user experience with minimal learning curve.

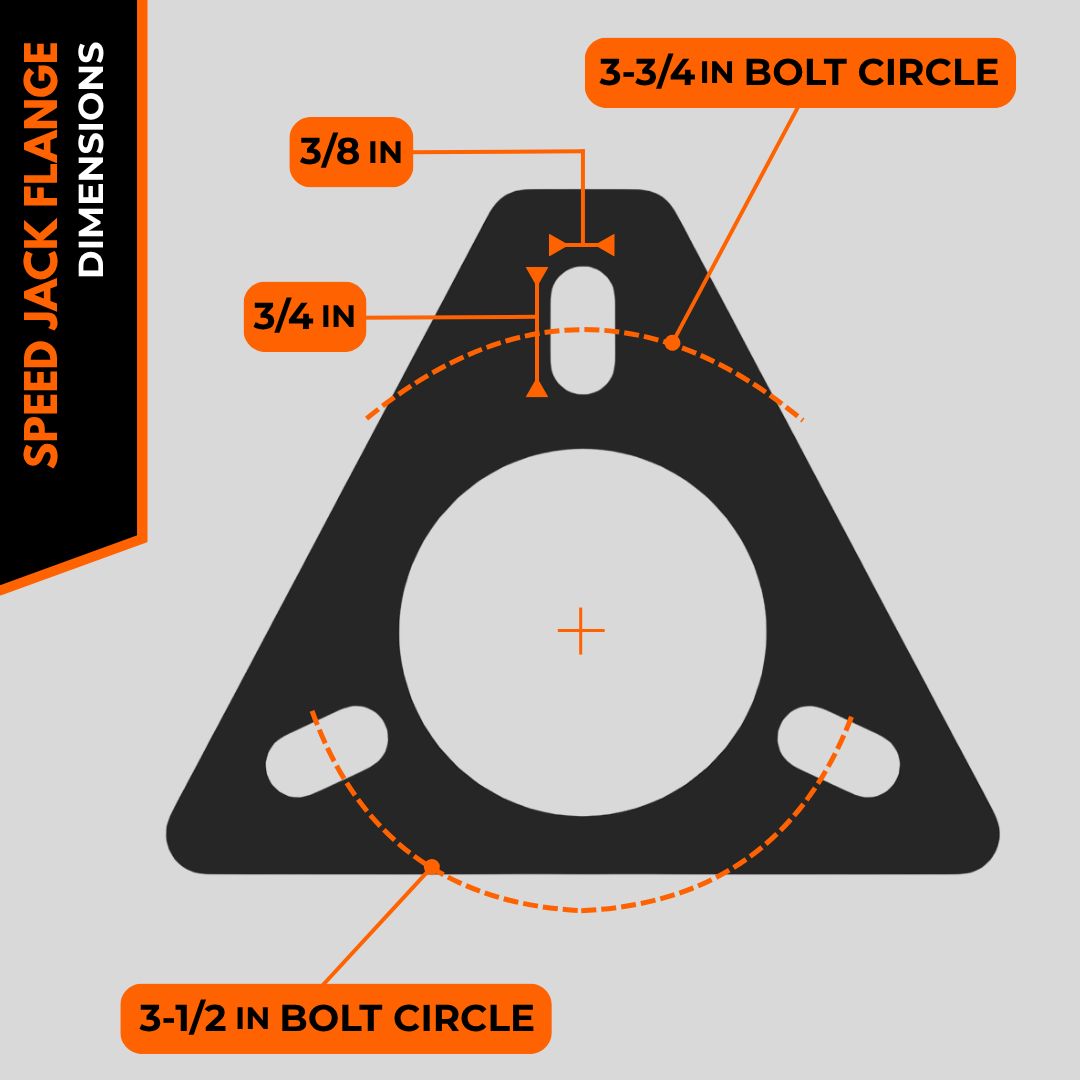

The housing is machined from billet material and built to handle repeated use in real-world conditions. As a complete jack assembly, it is designed for durability while maintaining a compact and practical footprint. Installation is simple, requiring only a standard three-bolt swap to replace your existing A-frame jack with no modification needed.

Manufactured in the USA, the Speed Jack is designed as a fast, no-nonsense solution for everyday trailer use. It replaces manual cranking with a simple, integrated system that improves efficiency, reduces effort, and keeps operation straightforward from start to finish.

Cordless Drill Powered

Use your cordless drill to raise and lower your trailer effortlessly.

3:1 Gear Reduction System

Our multi-stage gear reduction allows raising and lowering even the heaviest trailers without strain on you or your drill.

Universal Mounting System

Our wide selection of brackets makes mounting your Trailer Gearbox an easy no sweat task.

Fleet Friendly Design

Carry one gearbox on your truck and use with multiple trailers. Gearboxes go on and off in seconds.

Multi-Stage Gear Reduction

Gear reduction is what sets Trailer Gearbox apart from other trailer lifting solutions. Our multi-stage gear reduction takes your drill’s torque and multiplies it through multiple stages of spur gears, delivering efficient power to the jack. This allows you to raise and lower even the heaviest trailers without putting excessive strain on the drill or the user. Single-stage or direct drive options quickly max out your drill, while worm gear designs are inefficient and waste torque before it ever reaches the jack.

Heavy-Duty Construction

Our Gearboxes are engineered to take a beating. Constructed from high strength steel and billet aluminum and coated with an ultra durable anodized finish, you can be sure that your brackets can stand up to heavy loads and the most extream weather.

WE BACK UP OUR PRODUCTS

At Trailer Gearbox, we stand behind what we build. If it’s not right, we make it right-no runaround, no excuses. Our 5-Year Warranty is backed by real human support and our NO-BS commitment to our customers.

Will this fit my trailer?

Trailer Gearboxes are designed to fit 4in standard jack. With the addition of one of our accessory brackets they can be adapted to fit almost any trailer or jack setup. Check out our applications page for examples of installs.

Can this gearbox lift a loaded trailer?

Absolutely! Lifting heavily loaded trailers is where the Trailer Gearbox shines. If you need to unhitch your trailer with a load on it, make sure to take the proper safety precautions and ensure your trailer will be stable when unhitched.

Are there other mounting options?

Trailer Gearbox offers multiple bracket options to fit even the most challenging applications. To learn more about these brackets visit our BRACKETS page.

How do I install my Gearbox?

For installation instruction and application information click here:

Product Instructions:

What if I forget a Drill or my battery dies?

We recommend storing your original jack handle in your trailers toolbox or your tow vehicle. If you ever end up without your drill or a charged battery, its as easy as removing the clevis pin sliding off your gearbox and pining your old handle back on. While not as fast or easy it will get you out of a pinch.

Can't i just weld a socket to my jack?

You can weld a socket onto your jack-but you won’t get the benefits of a Trailer Gearbox. That setup creates a direct-drive system, and most drills simply don’t have enough torque to lift even an empty trailer without gear reduction.

To compensate, many people turn to heavy-duty impact drivers. The problem is, trailer jacks aren’t designed to handle constant hammering, and it’s only a matter of time before something fails.

Even then, you’re still limited on torque when lifting a loaded trailer.

Trailer Gearbox solves this by using a multi-stage gear reduction system, allowing you to use the smooth, controlled power of a cordless drill to raise and lower your trailer efficiently-without the risk of damaging your jack.
